Cloud Credentials

The controller needs to be configured with GKE Credentials in order to programmatically create and configure required GCP infrastructure. These credentials securely managed as part of a cloud credential in the Controller.

The creation of a cloud credential is a "One Time" task. It can then be used to create clusters in the future when required. Refer GKE Credentials for additional instructions on how to configure this.


To guarantee complete isolation across Projects (e.g. BUs, teams, environments etc.,), cloud credentials are associated with a specific project. These can be shared with other projects if necessary.


Users must have the below setup in the GCP Console

  1. GCP Project

  2. Create Service Account with the below Roles:

    • Compute Admin
    • Kubernetes Engine Admin
    • Service Account User
  3. Create Cloud Credentials

  4. APIs on Google Cloud Platform

    Enable the following APIs on your Google Cloud platform to provision a GKE cluster

    • Cloud Resource Manager API: Used for validating user’s GCP project
    • Compute Engine API: Used for validating and accessing various resources like zones, regions etc,. on GCP that are used by the GKE cluster
    • Kubernetes Engine API
  5. Cluster in a VPC network

    • Ensure the firewall allows HTTP and HTTPs traffic
    • Create the subnet that you want to use before you create the cluster
    • GCP VPC is global but subnet should be in the same region as your target cluster

High Level Steps

The image below describes the high level steps to provision and manage GKE clusters using the controller.

    participant user as User/Pipeline
    participant rafay as Controller
    participant boot as Bootstrap Node
    participant gke as GKE Cluster
    user->>rafay: Provision GKE Cluster (UI, CLI)
    note over boot, gke: GCP Project
    rect rgb(191, 223, 255)
    note right of rafay: For Every New GKE Cluster
    rafay->>boot: Provision Bootstrap VM in GCP Project
    rafay->>boot: Apply GKE cluster spec
    boot->>gke: Provision GKE Cluster
    boot->>gke: Pivot CAPI mgmt resources
    boot->>gke: Apply Cluster Blueprint
    gke->>rafay: Establish Control Channel with Controller
    rafay->>boot: Deprovision Bootstrap Node
    gke->>rafay: GKE Cluster Ready
    rafay->>user: GKE Cluster Provisioned

Self Service UI

The controller provides users with a "UI Wizard" type experience to configure, provision and manage GKE clusters. The wizard prompts the user to provide critical cluster configuration details organized into logical sections:

  • General
  • Network Settings
  • NodePools
  • Security
  • Feature
  • Advanced

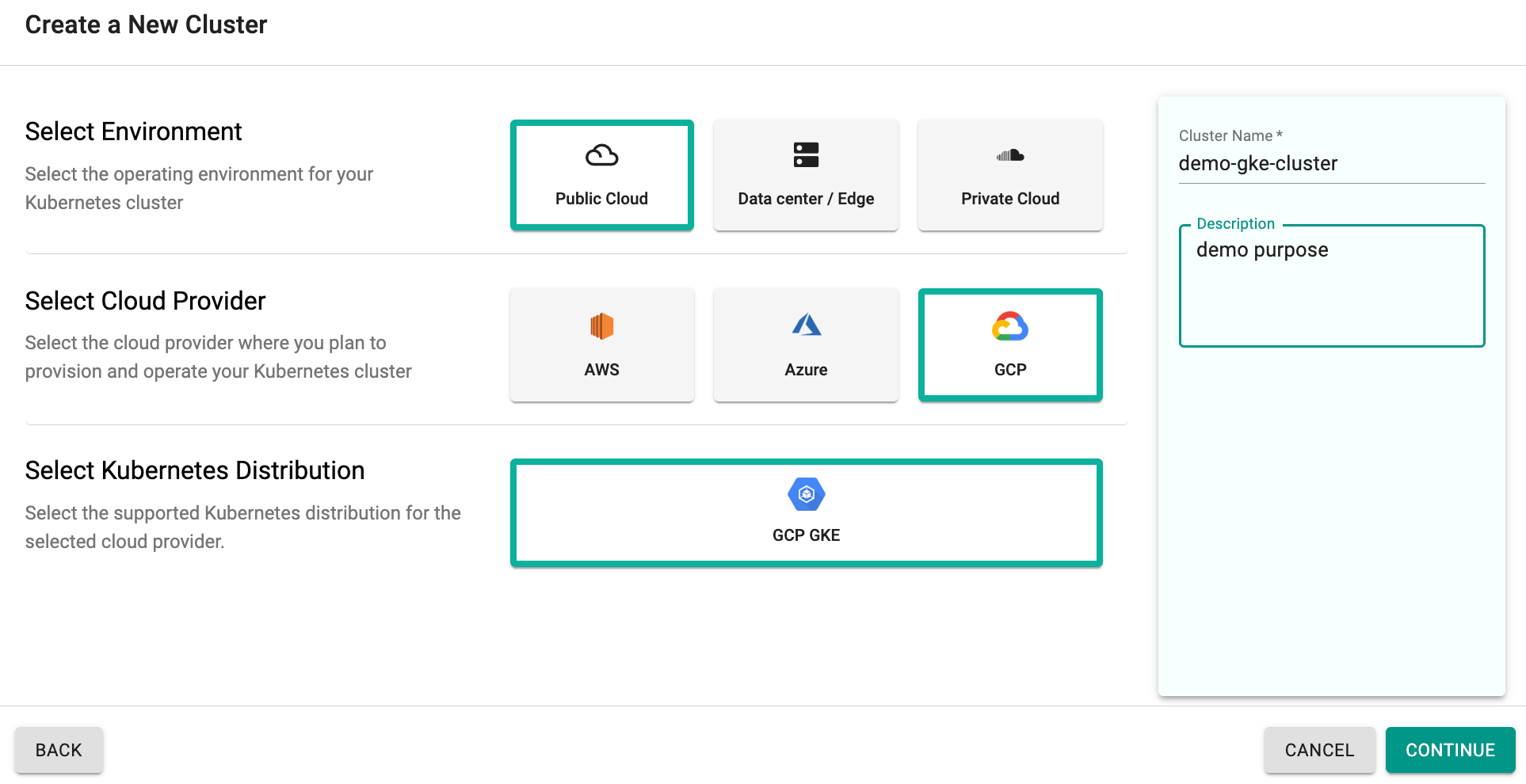

Create Cluster

  • Click Clusters on the left panel and the Clusters page appears
  • Click New Cluster
  • Select Create a New Cluster and click Continue
  • Select the Environment Public Cloud
  • Select the Cloud Provider GCP and Kubernetes Distribution GCP GKE
  • Provide a cluster name and click Continue

Create GKE Cluster


  • a. The cluster name should not exceed 40 characters
  • b. Always begin with a letter. The name cannot start with a number or any other character
  • c. The cluster name should not end with a hyphen ("-")

General (Mandatory)

General section is mandatory to create a cluster

  • Select the Cloud Credential from the drop-down created with GCP credentials
  • Enter the required GCP Project ID name
  • Select a Location Type, either Zonal or Regional
    • On selecting Zonal, select a zone
    • On selection Regional, select a Region and Zone
  • Select a Control plane version
  • Select a Blueprint Type and version


Use the GCP Project ID and not the Project Name.

General Settings

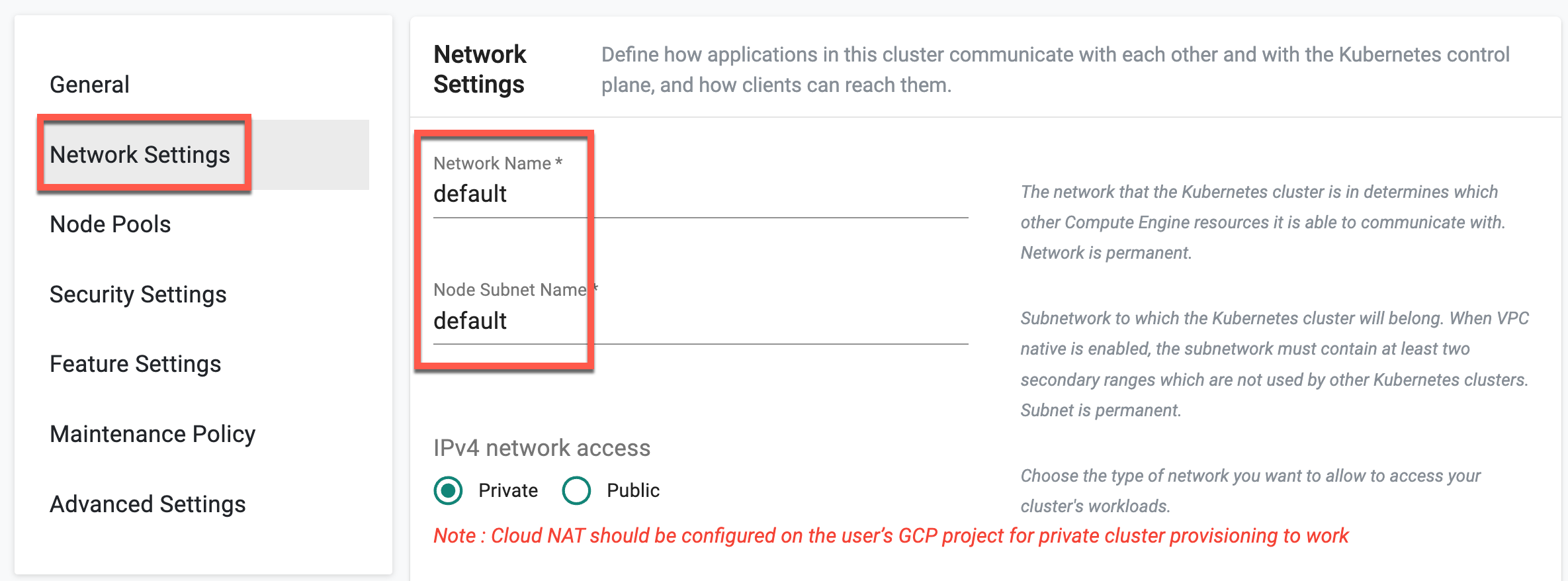

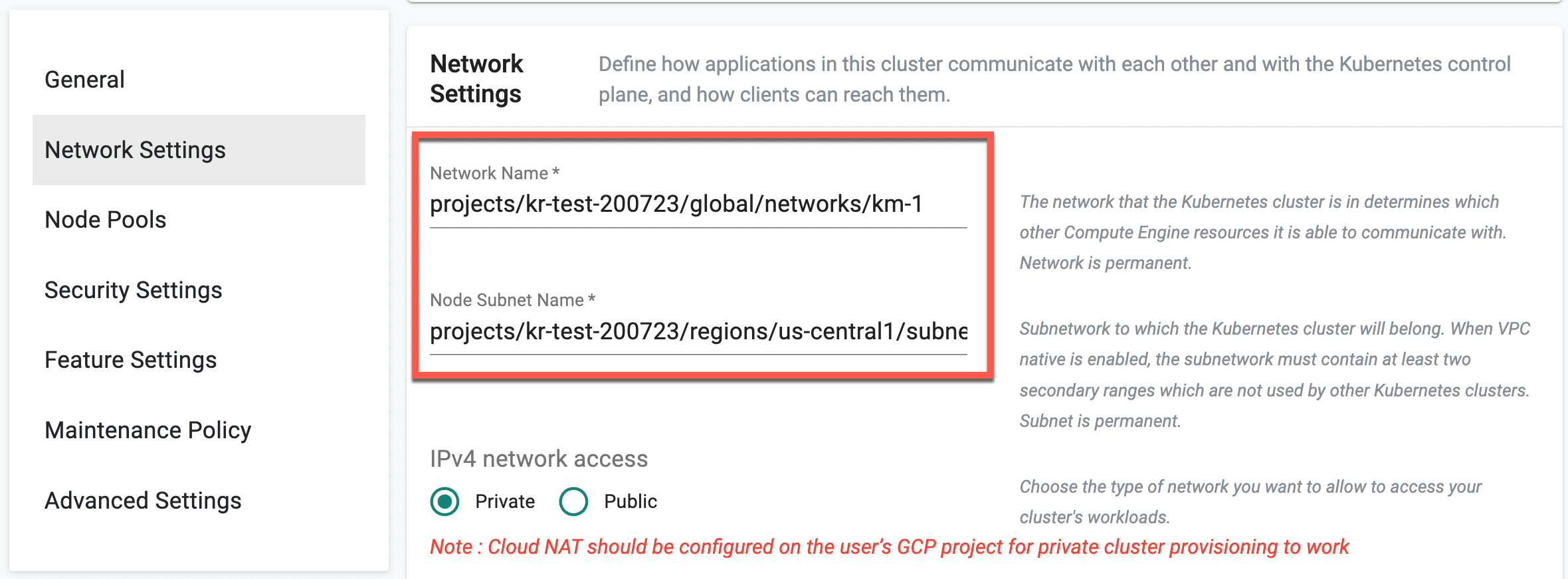

Network (Mandatory)

This section allows to customize the network settings

  • Provide a Network Name and Node Subnet
Field Name Field Description
Network Name The name of the Google Cloud network that the cluster will be created in.
Node Subnet Name The name of the subnet in the network that the nodes in the cluster will be created in.

Notes: Use the name for the network and node subnet. Do not use the CIDR.

Field Name Field Description
IPv4 network access Choose the type of network to allow access to your cluster's workloads. Learn more Learn more about public and private clusters in Google Kubernetes Engine.
Public Cluster: Choose a public cluster to allow access from public networks to the cluster's workloads. Routes aren't created automatically. This setting is permanent and cannot be changed after the cluster is created. Learn more Learn more about public and private clusters in Google Kubernetes Engine.
Private Cluster: Choose a private cluster to assign internal IP addresses to Pods and nodes, isolating the cluster's workloads from public networks. This setting is permanent and cannot be changed after the cluster is created. Learn more Learn more about public and private clusters in Google Kubernetes Engine.
Access control plane using its external IP address Disabling this option locks down external access to the cluster control plane. Google still uses an external IP address for cluster management purposes, but it's not accessible to anyone. This setting is permanent.
Enable Control plane global access With control plane global access, access the control plane's private endpoint from any GCP region or on-premises environment, regardless of the cluster's region. Learn more
Disable Default SNAT To use Privately Used Public IPs (PUPI) ranges, disable the default source NAT used for IP masquerading. Learn more
Cluster default Pod address range Define the IP address range for all pods in the cluster. Use CIDR notation, leave blank for the default range. This setting is permanent.
Maximum Pods per node Determine the size of IP address ranges assigned to nodes on GKE. Pods on a node are allocated IP addresses from its assigned CIDR range. Optimize the partitioning of the cluster's IP address range at the node level. This setting is permanent. Learn more
Service address range Define the IP address range for Kubernetes services in the cluster's VPC network. Use CIDR notation, leave blank for the default range. This setting is permanent.
  • Select a Cluster Privacy, Private or Public and provide the relevant details


On selecting cluster privacy Private, minimum one (1) cloud NAT must exist in the project where GKE cluster is being created

  • Optionally, enter the Pod Address Range and Service Address Range.

    • If not providing any value for Pod Address Range, each node in GKE receives a /24 alias IP range of 256 addresses for hosting the Pods that run on it.
    • If not providing any value for Service Address Range, service (cluster IP) addresses are taken from the cluster's subnet's secondary IP address range for Services. This range must be large enough to provide an address for all the Kubernetes Services you host in your cluster
  • Enter the count for Max Pods Per Node

General Settings

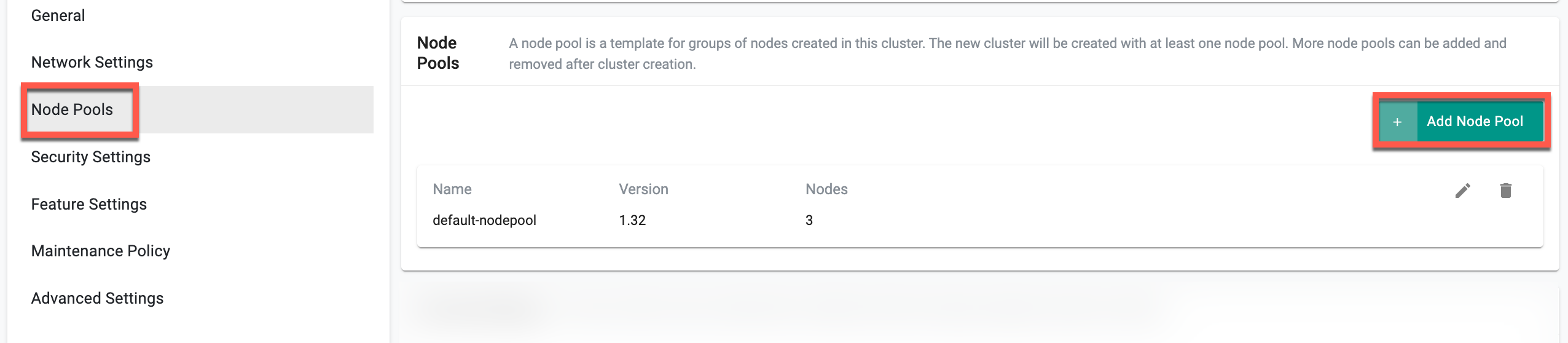

By default, a new cluster will be created with at least one node pool

  • To add more node pools, click Add Node Pool

General Settings

  • Enter a name and select the required Node K8s version
  • Enter the number of nodes
  • Enable/disable Node Zone. On enabling, add one or more zone(s)
  • Enable/disable cluster autoscaler to automatically create or delete nodes based on the workload

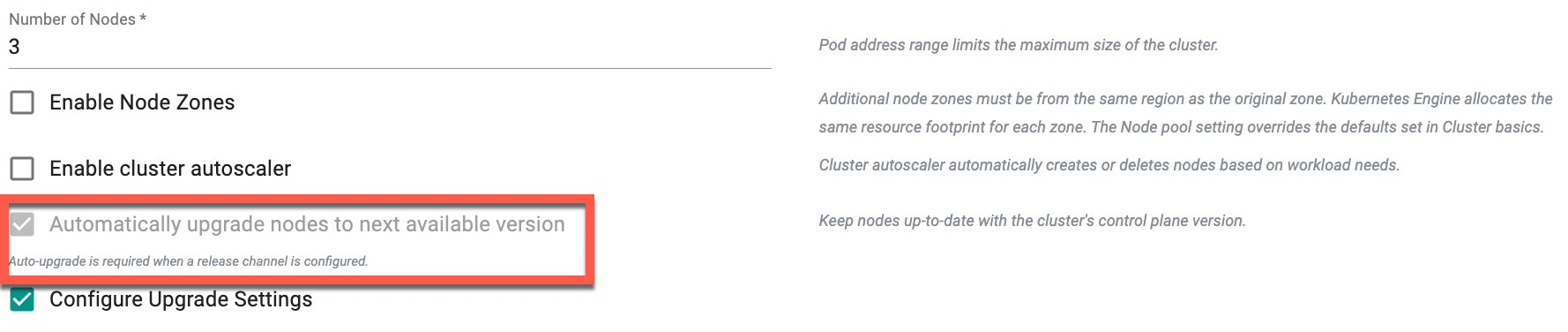

  • Enable/disable Automatically upgrade nodes to the next available version. Enabling this option will automatically upgrade the nodes within a cluster to the latest available version. Ensure that the Node K8s version matches the control plane version exactly or is within one minor version lower when auto upgrade nodes version is enabled
  • To implement a node pool upgrade strategy, activate the Configure Upgrade Settings. Enabling this option will display two strategies to choose from. Opt for either the Surge Upgrade or the Blue Green Upgrade based on the requirement

Surge Upgrade

On selecting surge upgrade, nodes are upgraded one by one or in small batches with controlled disruption. This type of strategy for upgrading node pools includes two (2) important settings: - Max Surge: This determines how many new nodes can be added at most to the node pool while upgrading. It ensures a controlled and gradual increase in capacity. - Max Unavailable: This sets the maximum number of nodes that can be offline simultaneously (not in Ready state) during the upgrade. It's about managing node downtime carefully to prevent service disruptions.

General Settings


  • Sum of Max Surge and Max Unavailable should not exceed 20
  • Max Surge value cannot be zero '0' if Max Unavailable is set to zero '0'

Blue Green Upgrade

On selecting Blue Green Upgrade, a new set of nodes with updates is created, validated, and can be switched to while keeping the old nodes as a backup, allowing for easy rollback if needed. This type of strategy for upgrading node pools includes three(3) specific pieces of information:

  • Batch Node Count: This is the fixed number of nodes to be gradually drained in each batch. If this number is set to zero, this step will be skipped entirely.

  • Batch Soak Duration: This indicates the amount of time, measured in seconds, to pause after every batch of nodes has been drained. During this pause, you can assess your workload to make sure everything is functioning as expected after the nodes have been upgraded.

  • Nodepool Soak Duration: After all batches have been completely drained, this duration in seconds is the waiting time before proceeding. It provides an opportunity for you to double-check your workload's health before proceeding further.

General Settings


The max duration for Batch Soak Duration is 604800 seconds

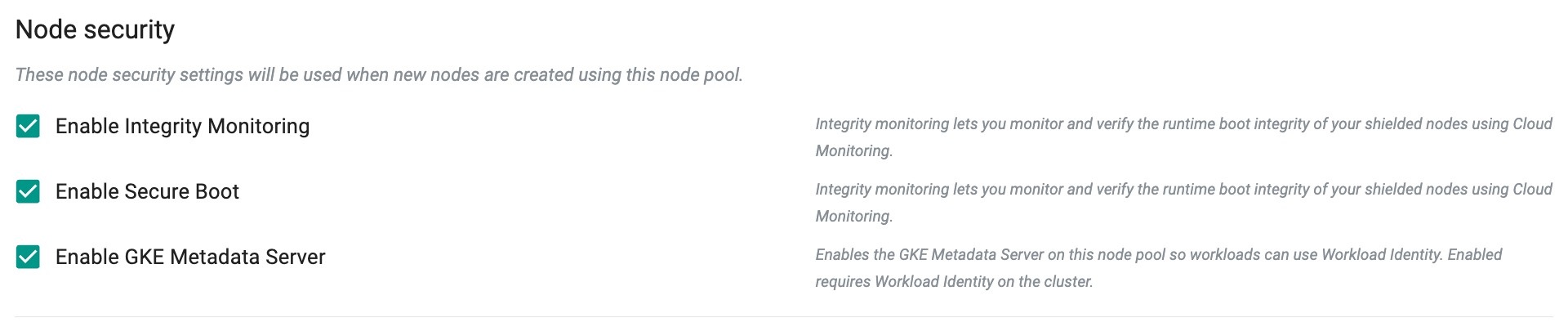

  • Optionally, provide the details for Configure Node settings, Node networking, Node security, and Node metadata

General Settings

  • Click Save

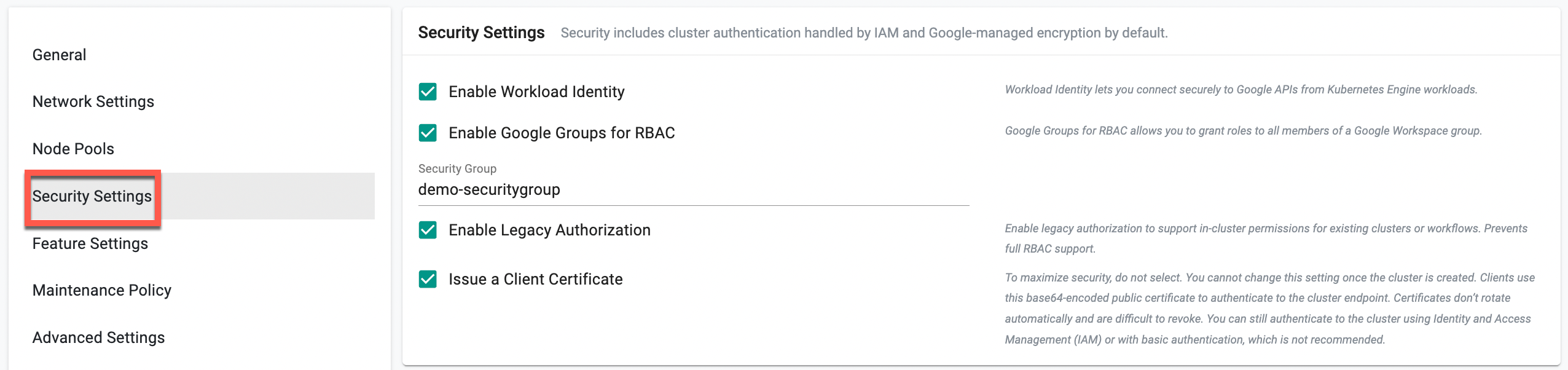

Security (Optional)

This section allows to customize the Security Settings

  • Enable Enable Workload Identity to connect securely to Google APIs from Kubernetes Engine workloads
  • Enable Enable Google Groups for RBAC to grant roles to all members of a Google Workspace group. On enabling this option, enter the required group name
  • Enable Enable Legacy Authorization to support in-cluster permissions for existing clusters or workflows and this prevents full RBAC support
  • Provide Client Certificate to authenticate to the cluster endpoint
Field Name Field Description
Workload Identity Workload Identity is a feature of Google Kubernetes Engine (GKE) that allows workloads running on GKE to securely access Google Cloud services. It enables you to assign distinct, fine-grained identities and authorization for each application in your cluster.
Google Groups for RBAC Google Groups for RBAC lets you assign RBAC permissions to members of Google Groups in Google Workspace. Learn more
Legacy Authorization Legacy Authorization enables in-cluster permissions for existing clusters or workflows. It does not support full RBAC. Learn more
Issue a client certificate The "Issue a Client Certificate" setting controls whether a client certificate will be issued for the cluster. Client certificates provide an additional layer of security when authenticating to the cluster endpoint (Kubernetes API server). Note that certificates don't rotate automatically and revoking them can be difficult. You can still authenticate to the cluster using Identity and Access Management (IAM) or basic authentication, although it is not recommended.

Customize Cluster

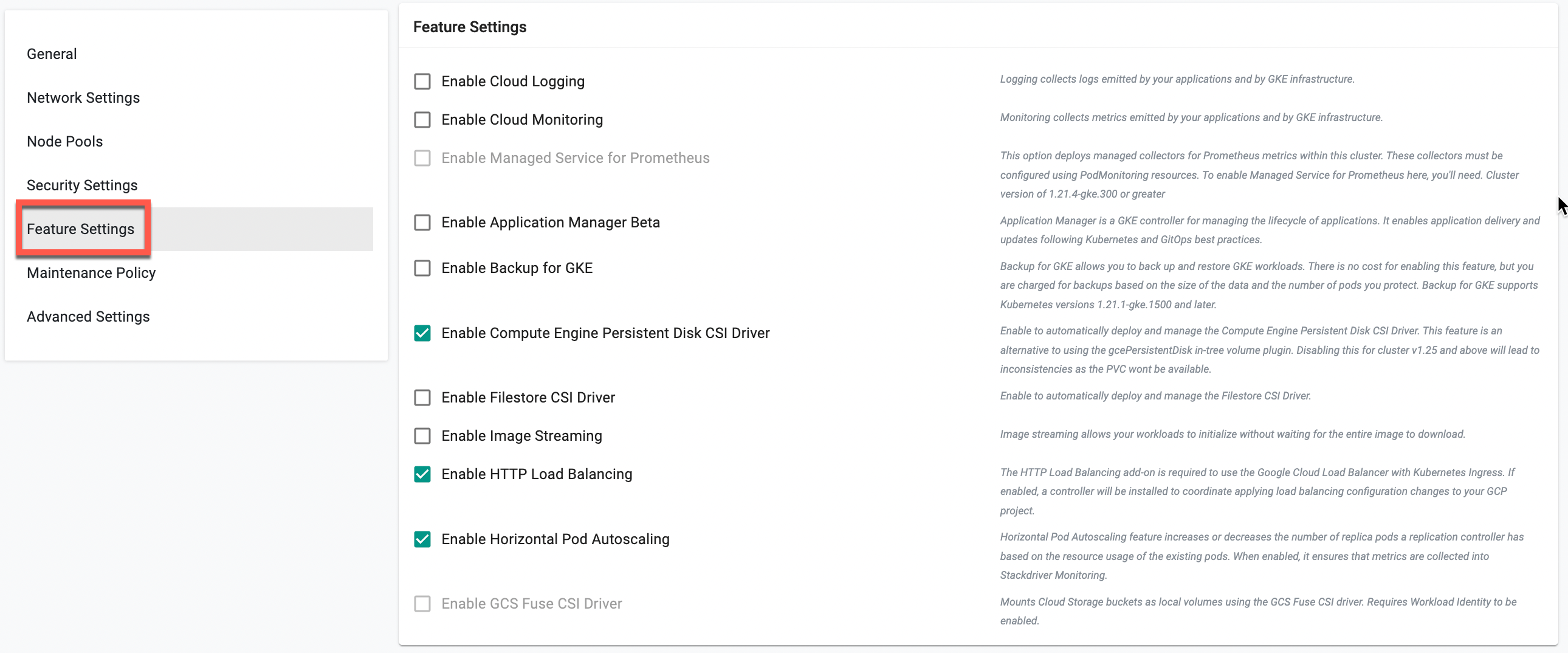

Feature Setting (Optional)

Enable the required features

Field Name Field Description
Cloud Logging Collect logs emitted by your applications and GKE infrastructure. Learn more
Enable Cloud Monitoring Monitor metrics emitted by your applications and GKE infrastructure. Learn more
Enable Managed Service for Prometheus Deploy managed collectors for Prometheus metrics within this cluster. These collectors must be configured using PodMonitoring resources. Learn more
Enable Backup for GKE Enable backup and restore for GKE workloads. Costs are based on the data size and the number of protected pods. Learn more
Enable Filestore CSI Driver Automatically deploy and manage the Filestore CSI Driver in this cluster. Learn more
Enable Image Streaming Allow workloads to initialize without waiting for the entire image to download. Learn more
Enable Compute Engine Persistent Disk CSI Driver Automatically deploy and manage the Compute Engine Persistent Disk CSI Driver. This feature is an alternative to using the gcePersistentDisk in-tree volume plugin. Learn more

CNI Settings

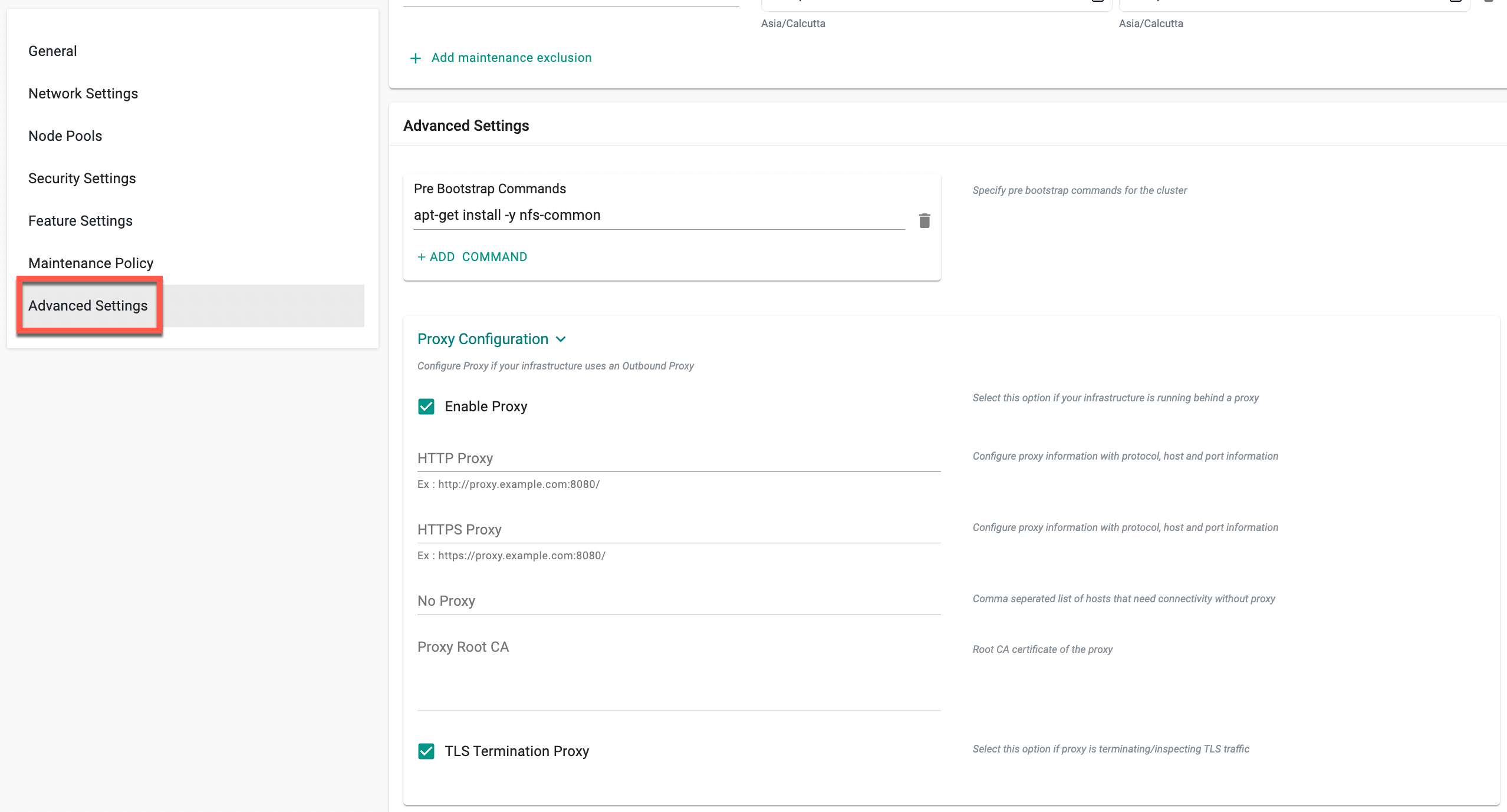

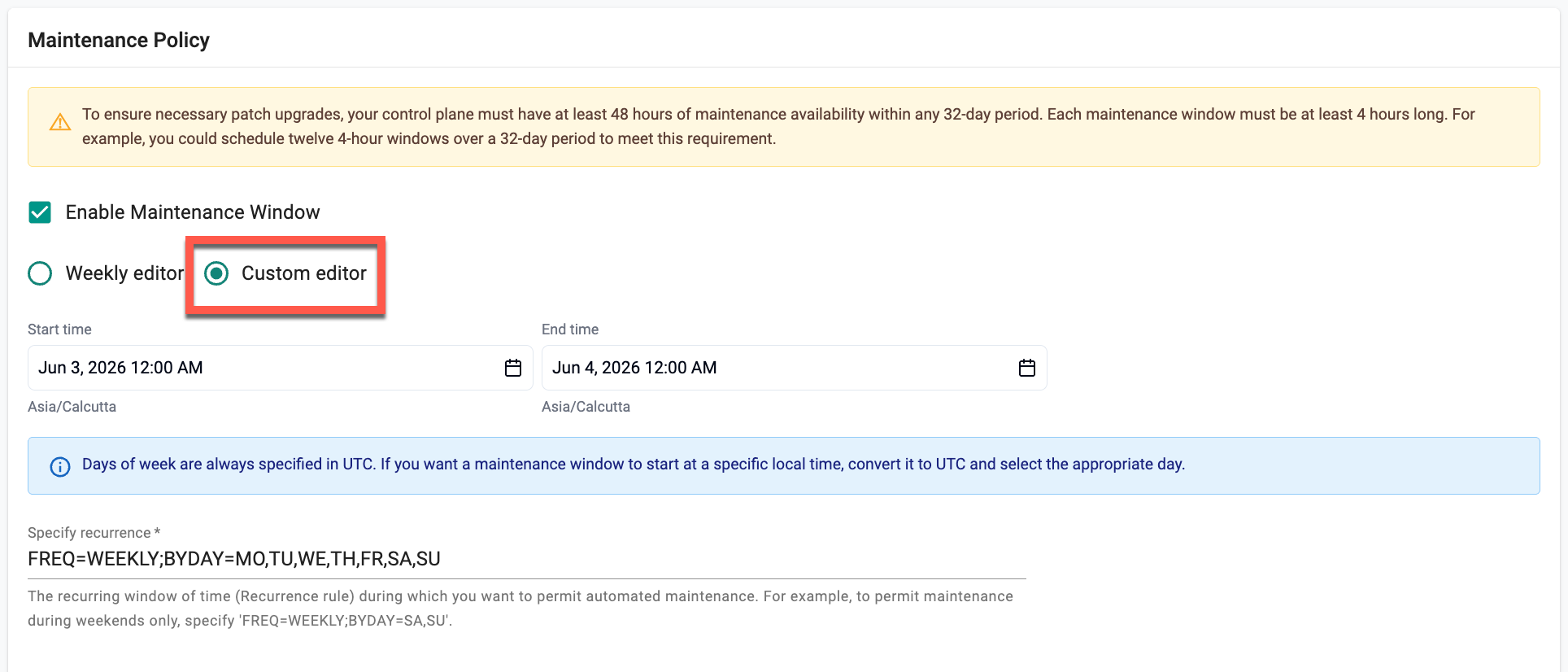

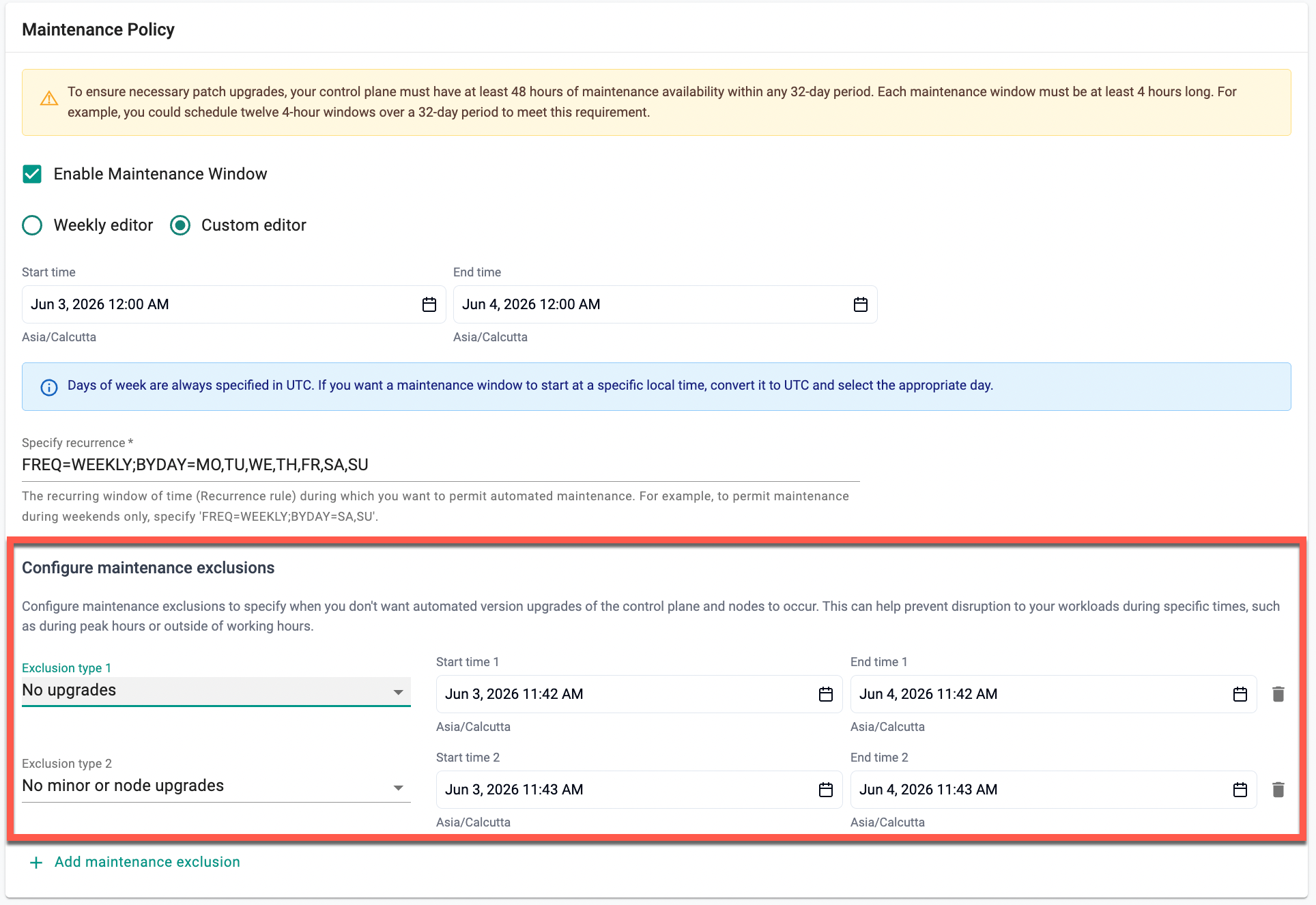

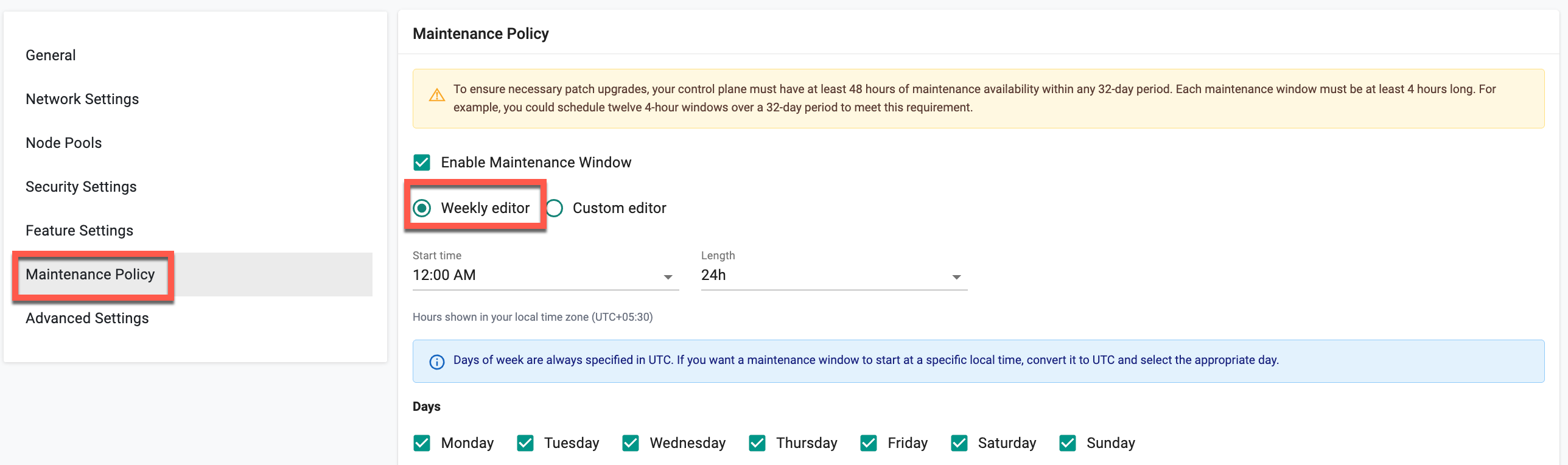

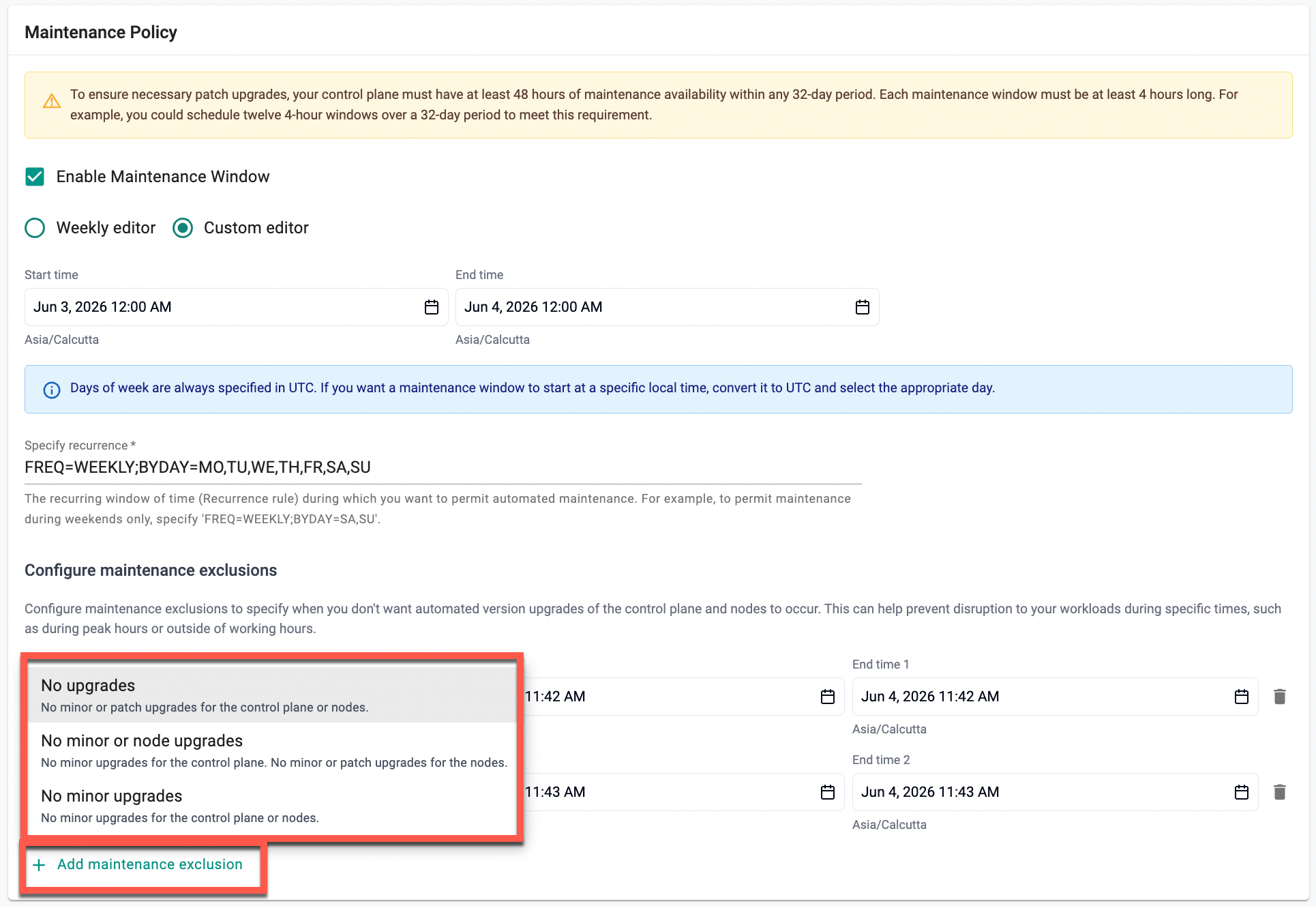

Advance Setting (Optional)

Proxy Configuration

Optionally, users can provide Proxy Configuration details.

  • Select Enable Proxy if the cluster is behind a forward proxy.
  • Configure the http proxy with the proxy information (ex:
  • Configure the https proxy with the proxy information (ex:
  • Configure No Proxy with Comma separated list of hosts that need connectivity without proxy. Provide the network segment range selected for provisioning clusters in the vCenter (ex:
  • Configure the Root CA certificate of the proxy if proxy is terminating non MTLS traffic
  • Enable TLS Termination Proxy if proxy is terminating non MTLS traffic and it is not possible to provide the Root CA certificate of the proxy.

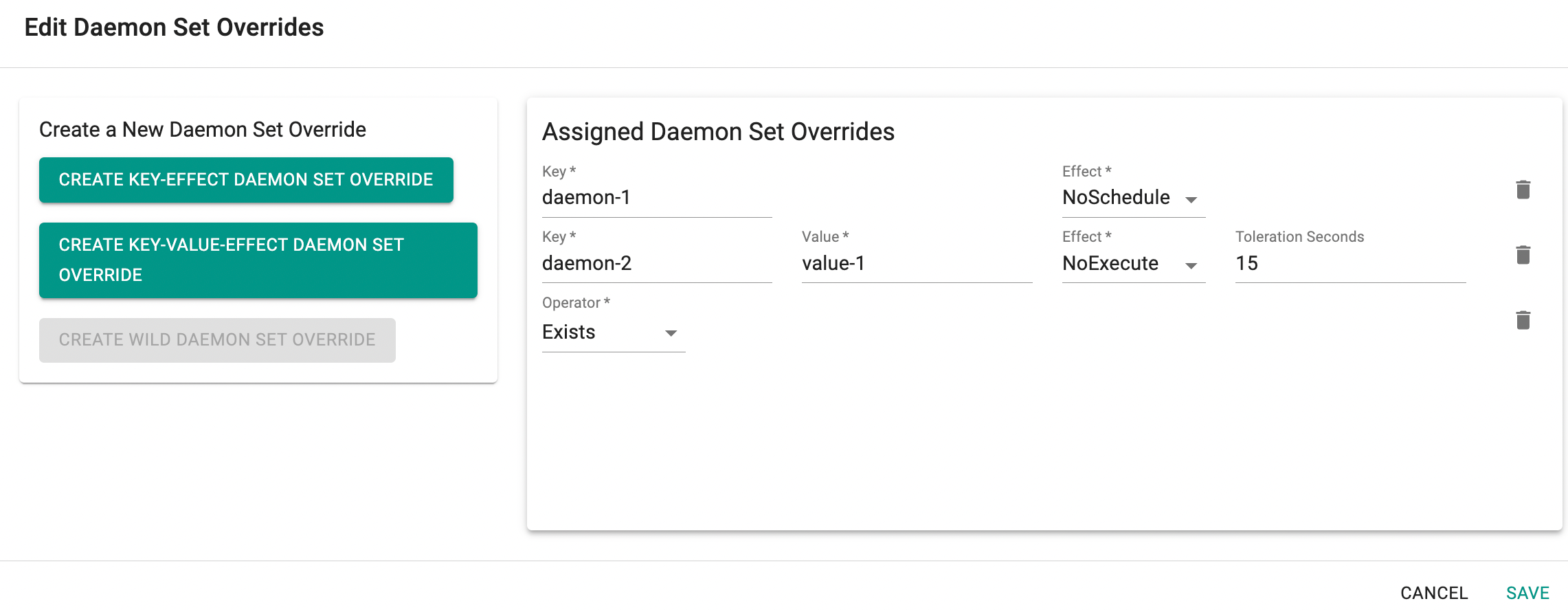

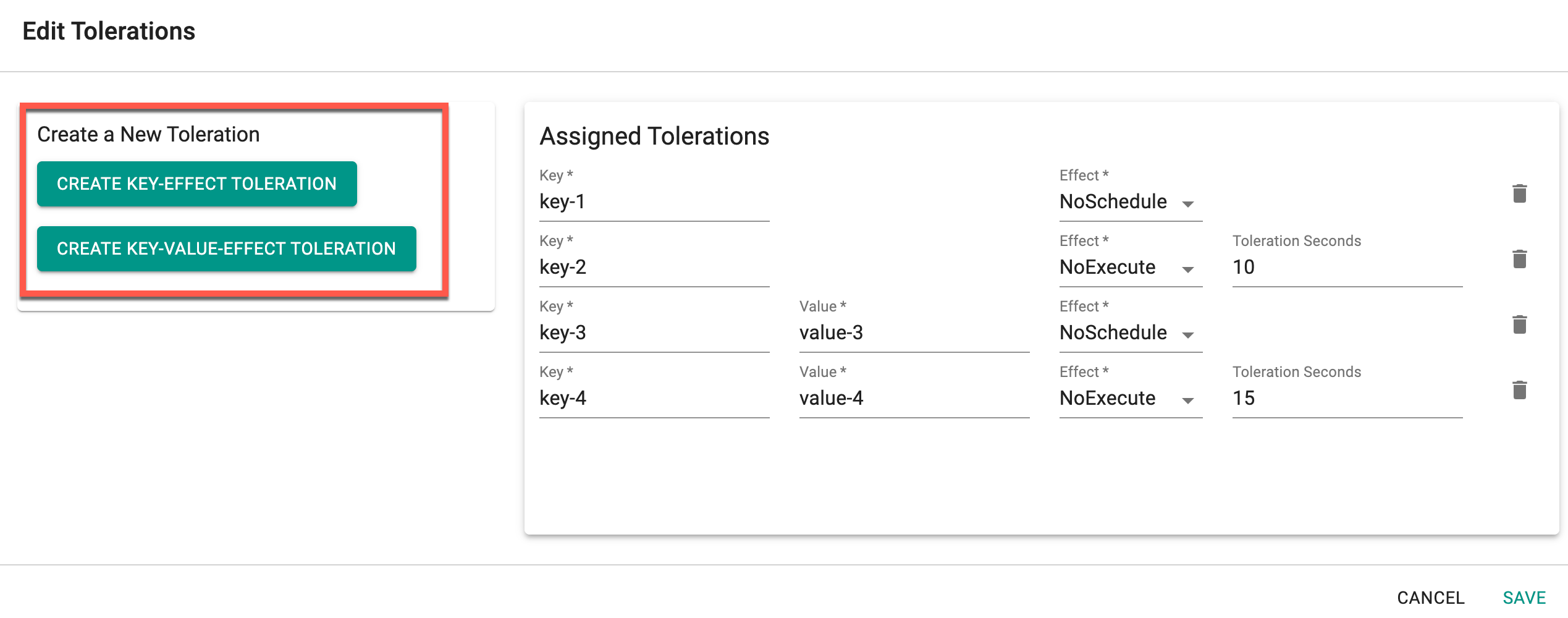

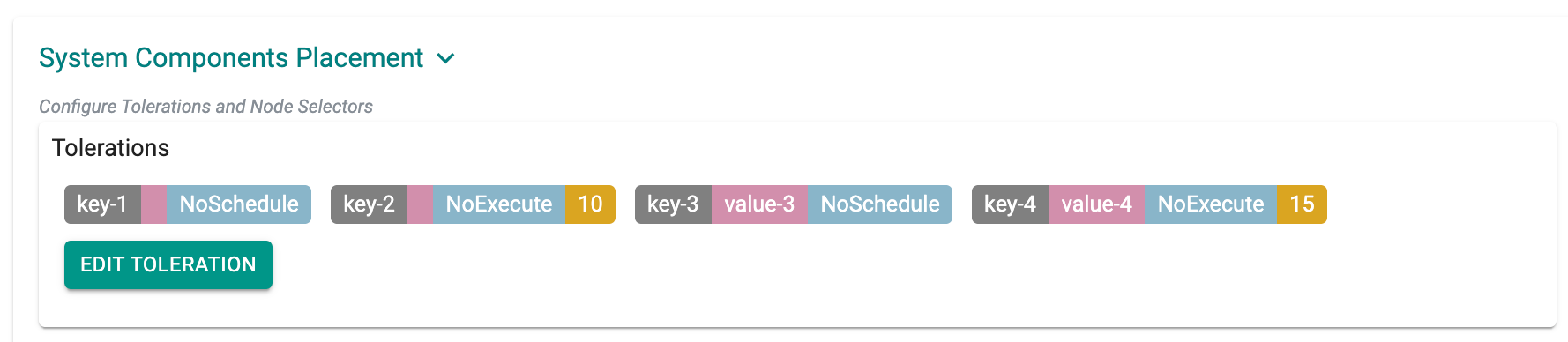

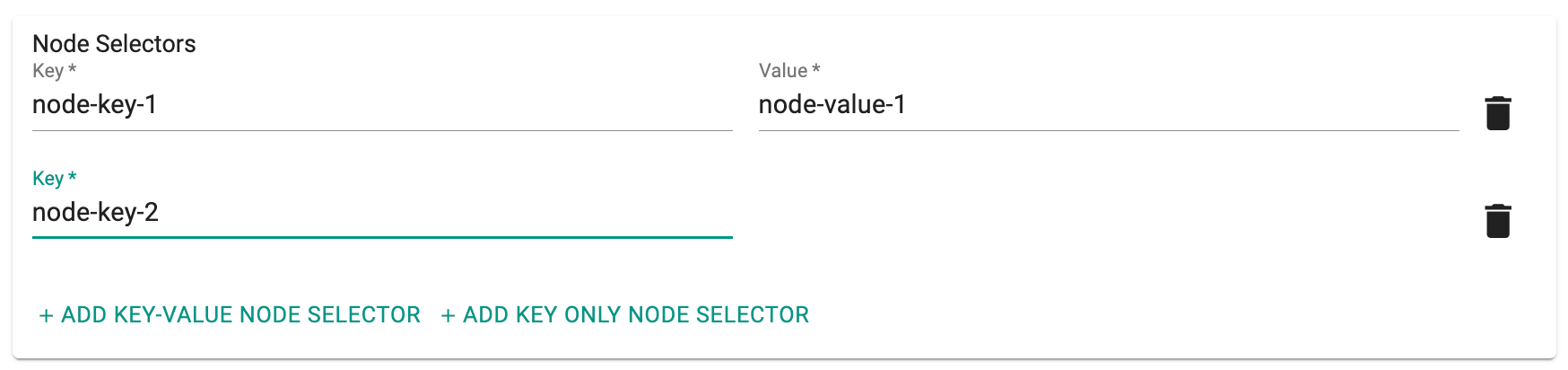

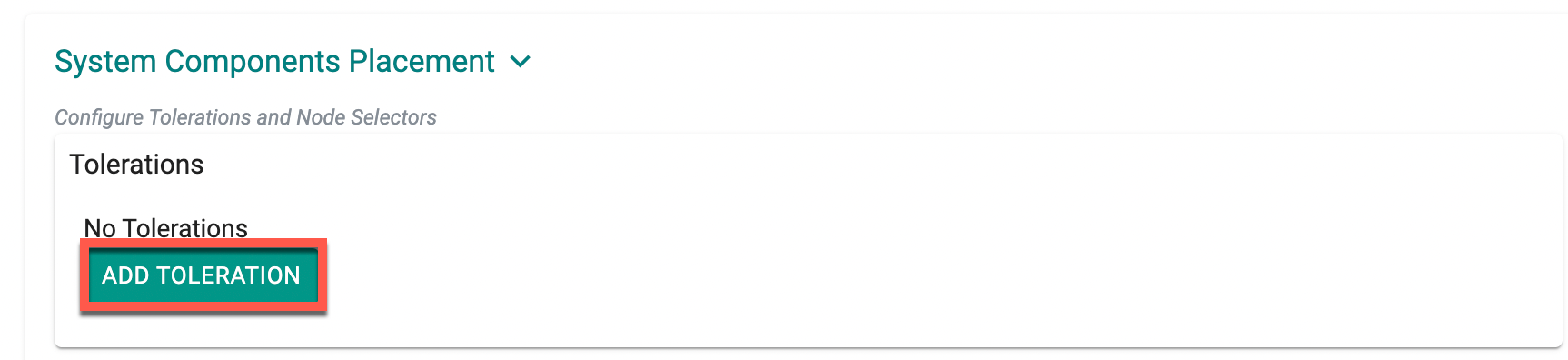

Google CNI Settings

Once all the required config details are provided, perform the below steps

  • Click Save Changes and proceed to cluster provisioning
  • The cluster is ready for provision. Click Provision

Cluster Provisioning

Provision Progress

Once the user clicks on Provision, the system begins to go through a list of conditions for a successful provisioning as shown below

Customize Cluster

Successful Provisioning

Once all the steps are complete, the cluster is successfully provisioned as per the specified configuration. Users can now view and manage the GKE Cluster in the specified Project in the Controller. On successfully provisioning, the user can view the dashboards

Customize Cluster

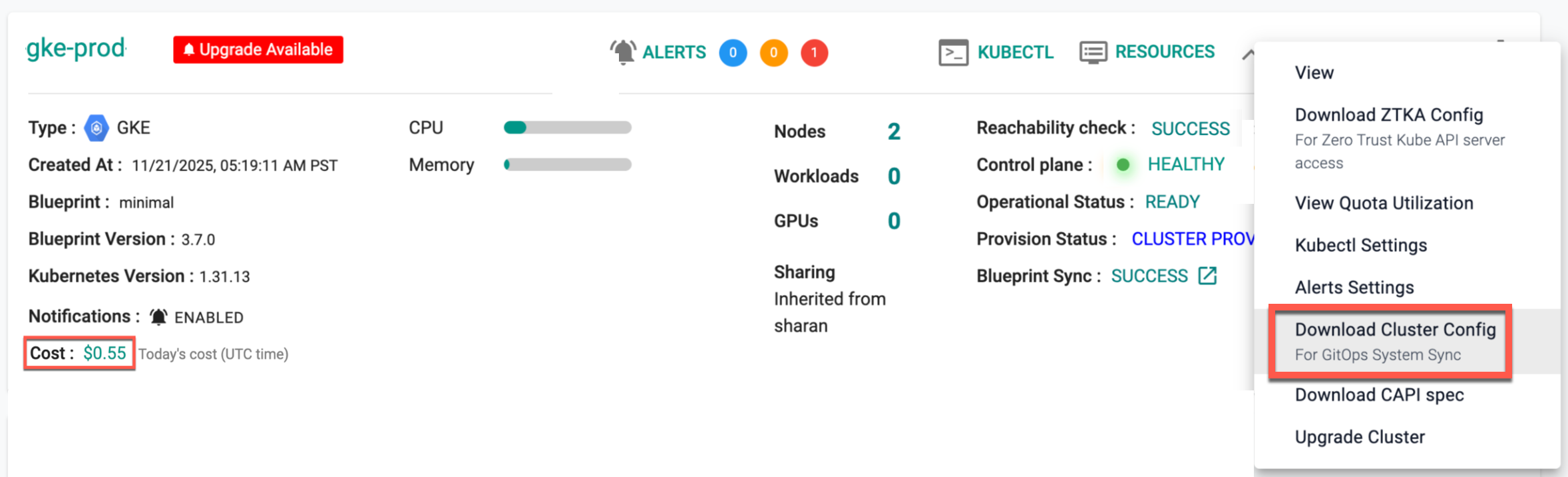

Download Config

Administrators can download the GKE Cluster's configuration either from the console or using the RCTL CLI

Successful Cluster

Failed Provisioning

Cluster provisioning can fail if the user had misconfigured the cluster configuration (e.g. wrong cloud credentials) or encountered soft limits in their GCP account for resources. When this occurs, the user is presented with an intuitive error message. Users are allowed to edit the configuration and retry provisioning

Refer to Troubleshooting to learn about potential failure scenarios.

Pause/Resume Provisioning

During cluster provision, if an error occurs or provisioning fails due to any configuration issues, users can pause provisioning, rectify the issues and resume the cluster provisioning

  • On receiving any error as shown below, click Pause Provision

Successful Cluster

  • Once the configuration details are rectified, click Resume Provision as shown below

Successful Cluster

Note: This process cleans up the resources that are not required
