Chargeback/Showback

Cost Governance allows creation of chargeback groups to track and bill internal teams based on resource consumption. Chargeback/Showback groups can be any logical grouping of resources and these groups can be created based on project, clusters, namespaces and/or labels. The Chargeback help the users to understand which resources are being consumed and the costs associated with these resources.

An admin can create Chargeback Groups via multiple methods:

  • Controller
  • API
  • RCTL CLI
  • Terraform

Getting to the Chargeback Group

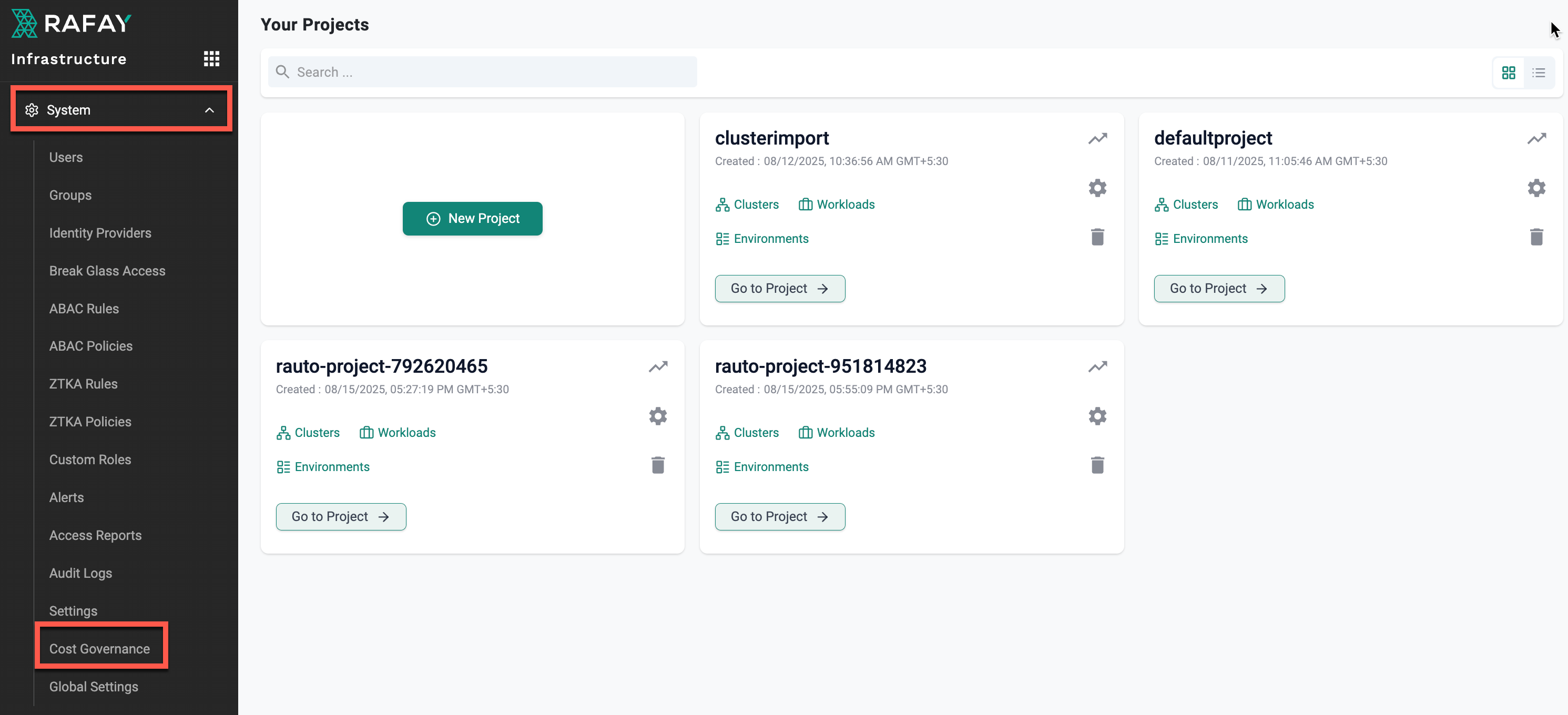

  • Login to the controller
  • Click on System and select Cost Governance

Service Mesh Dashboard

Chargeback Group page appears. By Default, Unallocated cost sharing and Common Services cost sharing are disabled. It is important to distribute the cost of unallocated resources and common services among the different teams/applications utilizing the cluster

Unallocated Resources

  • Enabling Unallocated Resources allows selection of the Sharing Policy

    • Based on resource allocation: Allows for distribution in accordance with the ratio determined by each tenant's computed use. For example, if a cluster has 2 namespaces with 30% and 40% allocated, the unallocated cost gets divided in the same ratio (30:40)

    • Equally: Allows to equally share the shared cost with all the tenants of a cluster. For example, if a cluster has 2 pods, the remaining 30% of unallocated cost gets divided equally

Service Mesh Dashboard

Common Services

Users can configure a common service policy, assigning specific costs to the shared services. The allocation of unallocated costs is then distributed proportionally based on the usage of these common services across namespaces.

Enabling Common Services allows to Add Policy and select Share Policy. Common Services can be configured using the policies. - Click Add Policy

Service Mesh Dashboard

New Policy Details screen appears

  • Provide a Policy Name
  • Choose either All Projects or the specific projects you need
  • Opt for All Clusters or Some Clusters to select the necessary cluster names or labels
  • Set up a list of Namespaces and Namespace Labels. Consequently, all pods within these selected namespace(s) will be considered common services for the chosen projects and clusters

Service Mesh Dashboard

  • Click Save & Exit

The list of policies is displayed as shown below.

Service Mesh Dashboard

Important

  • Sharing the unallocated and common services cost is optional
  • If common service sharing is enabled, the control plane is automatically considered a common service by default. Users can add additional common services by configuring policies

Limitations

  • In the scenario where customers frequently change their namespace labels, a potential limitation arises in the context of generating chargeback reports or configuring common services policies based on namespace labels. The assumption that a label, once applied, remains unchanged for an extended period is critical for accurate cost metrics. If this assumption does not hold, and a label is added to a namespace while cost metrics are being collected (even for a short duration, such as an hour), the chargeback report assumes the label's presence for the entire 24-hour day.

  • When establishing a common services cost-sharing policy filtered by cluster labels, it's important to note that this policy applies only to clusters that have not been deleted from the console. To allocate costs for deleted clusters, users must create cluster-specific policies based on cluster names or select "All Clusters".

  • In the context of creating a common services policy or generating a summary report based on namespace labels, it is essential to highlight that the data in the report is limited to clusters with a base blueprint version >=2.1.0.


Chargeback Groups

A chargeback group is a collection of resources forming a logical entity in a customer's organization. These would typically be based on namespaces and/or specific ‘labels’.

Users have the flexibility in the platform to create chargeback groups based on a variety of parameters. Org Admin can create chargeback groups.

Service Mesh Legend

Create Chargeback Group

Perform the below steps to create a chargeback group

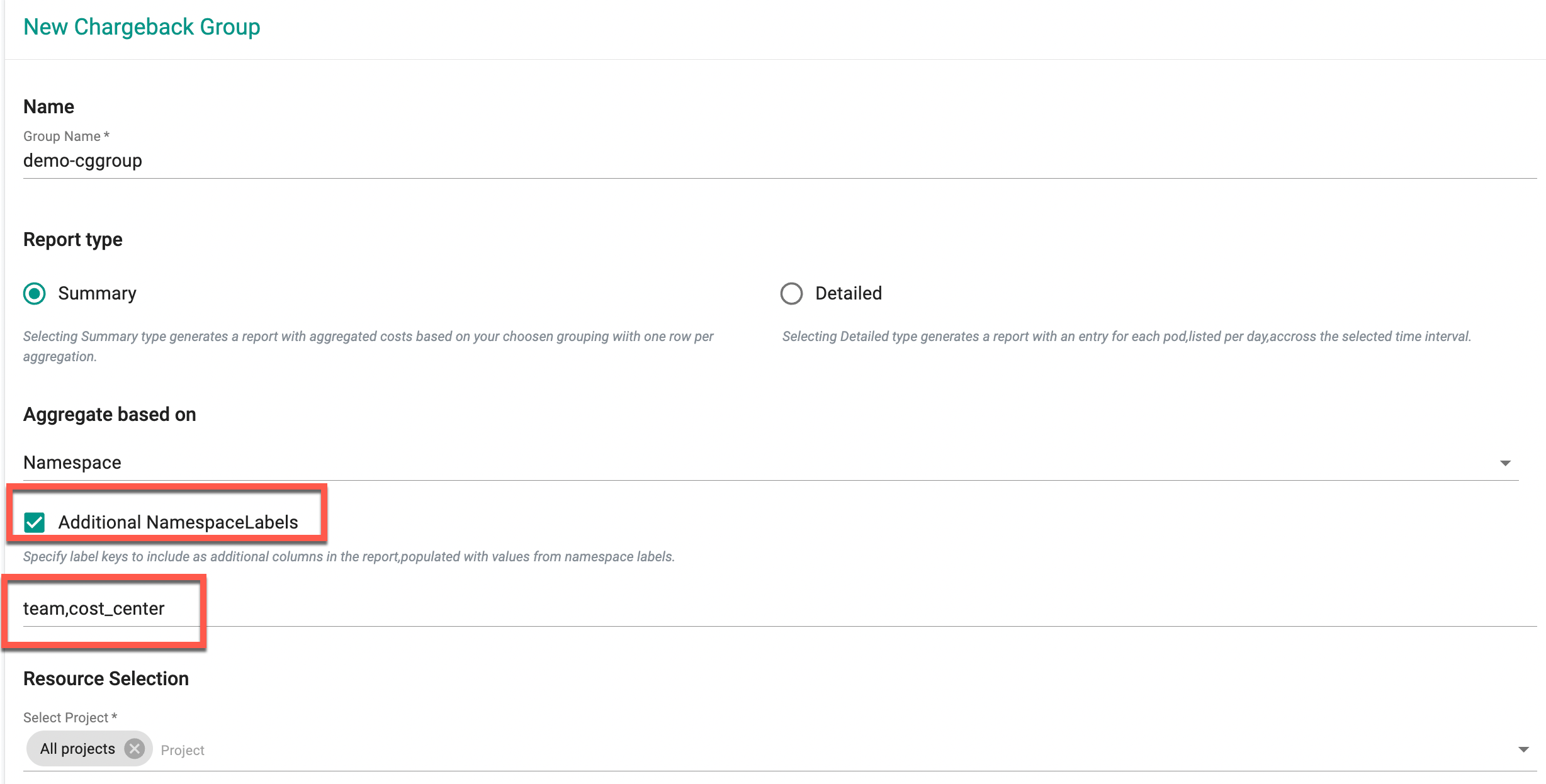

  • Click Create Chargeback Group under Groups. A new Chargeback page appears
  • Provide a name for the group
  • Select the Report Type, either Summary or Detailed

  • Selecting Summary type allows the users to retrieve an aggregated cost based on Project, Cluster, Namespace, Label, and Namespace Label. Based on the selection, add details of the resource. Below is an example of Aggregate based on Project with Resources Selection as All Projects. This will generate a cost summary report of all projects

Service Mesh Legend

  • Selecting Detailed type allows the users to choose a project and the available clusters/namespaces/labels or a combination/exclusion of all to form a chargeback group
  • Select the required cluster, namespace, and labels available within the selected project, and click Include. You can do as many as inclusions based on the requirement
  • Use Exclude button to remove a specific cluster, namespace, label or any combination from this group

  • Click Save

Service Mesh Legend

On successful creation, you can view the newly created group in the Groups page as shown below

Service Mesh Legend

Generate Cost Reports

Once a chargeback group is created, users can generate cost reports at their convenience.

  • Under the Groups, click the ellipsis icon of a specific chargeback group and select Reports
  • Select a period (Start and End date) and click Generate

Service Mesh Legend

The report generation process is compute intensive and it may take a few minutes to generate the report. Once the report is ready, click the download button to download the report in CSV format

Service Mesh Legend

The chargeback report has distinct columns showing the allocated costs for both unallocated resources and common services.

The common service report offers insights into how these common services are utilized, allowing for a more nuanced understanding of cost distribution within the project and across namespaces.
