k8s YAML

Kubernetes YAML is a human-readable text-based format for specifying configuration-type information. Using YAML for K8s definitions provides a number of benefits to users.

  1. Convenience: Users no longer have to add all of their parameters to the command line.

  2. Maintenance: YAML files can be added to source control, so that changes can be tracked.

  3. Flexibility: Users can create much more complex structures using YAML relative to command line

You can manage the lifecycle of k8s YAML based workloads using the Web Console or RCTL CLI or REST APIs. We strongly recommend that customers automate this either

  • By integrating RCTL with your existing CI system based automation pipeline, OR
  • By leveraging the integrated GitOps capability.

Create Workload

You can create Kubernetes YAML based workloads using the Web Console or the RCTL CLI or REST APIs.

  • Login into the Web Console
  • Click on New Workload
  • Provide a name, select package type as "k8s YAML"
  • Select if you would like to "upload" the artifacts or you would like the Controller to "pull" it directly from a configured repository.
  • Select the namespace where you wish to deploy the workload

Create YAML Workload


Option A: Pull from Repository

This approach requires the user to first select the type of the Git repository. Then, in the next step

  • Select the repository from the dropdown list
  • Select the branch/revision in the Git repo (in this example, master)
  • Specify the path for the YAML file (in this example, nginxyaml/nginx.yaml)

Create YAML Workload-Pull Artifacts

Option B: Upload k8s YAML

For this approach, the user needs to upload the "k8s yaml" file to the Controller. After uploading the file, users are allowed to "download" the configured k8s yaml file if they wish to view it.

Configure YAML Workload


Publish Workload

  • Selecting the placement policy for the workload
  • Publish the workload

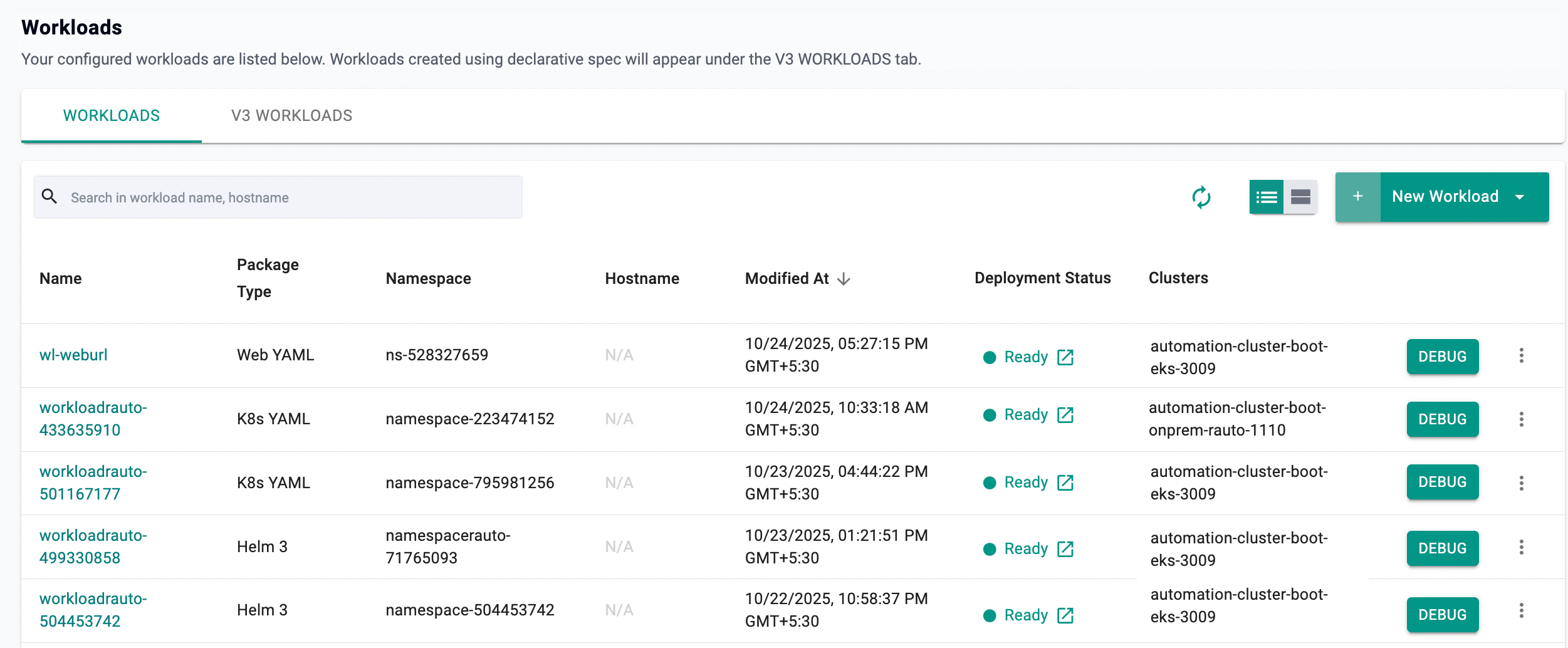

Publish YAML Workload


Debug

At anytime during or after deployment, users can view the status and other information about their workload's k8s resources by clicking on Debug.

Debug YAML Workload
